880SR Softgel Encapsulation Machine
Servo Softgel Machine
Driven by servo motor, this machine will find a solution to Your mass production with one machine. The Servo Machine will provide you 6rpm maximum with big size of die roll. It especially offers you not only less noise and vibration but also user friendly system.
Production Capacity (6RPM)
|
Shapes & Sizes |
No. of Cavities |
Capsules/Hour |
|
Oval #7.5 |
612 |
220.320 |
|
Oval #10 |
544 |
195.840 |
|
Ob #20 |
315 |
113.400 |

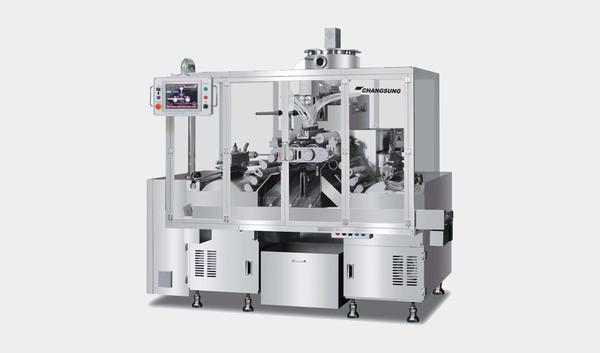

650R Sofgel Encapsulation Machine
High Speed Softgel Machine
We are proud of introducing the encapsulation machine that run at the speed of 6.5 rpm, developed by accumulation of technology and expertise. Teh advanced design concept and materials enable 6.5 rpm. Also, the Customer Service Team support our customer from the factory layout to the quality control of the soft capsule.
Production Capacity (6.5RPM)
|
Shapes & Sizes |
No. of Cavities |
Capsules/Hour |
|
Oval #7.5 |
420 |
163.800 |
|
Oval #10 |
396 |
154.440 |
|
Ob #20 |
231 |
90.090 |
OLUS Softgel Encapsulation Machine
OLUSCAPS Softgel Machine
Changsung’s investment for the Oluscaps machine, Changsung can be a leading company to make and innovative Oluscaps machine Raw material has Kosher certificates and MSDS. A strict Quality Control and COA will be provided on every natch. ChangSung’s installation & commissioning team will assure customers to make good enough Oluscaps from A to Z.
Production Capacity (3RPM)
|
Shapes & Sizes |
No. of Cavities |
Capsules/Hour |
|
Oval #7.5 |
420 |
59.400 |
|
Oval #10 |
396 |
57.420 |
|
Ob #20 |
231 |
32.760 |

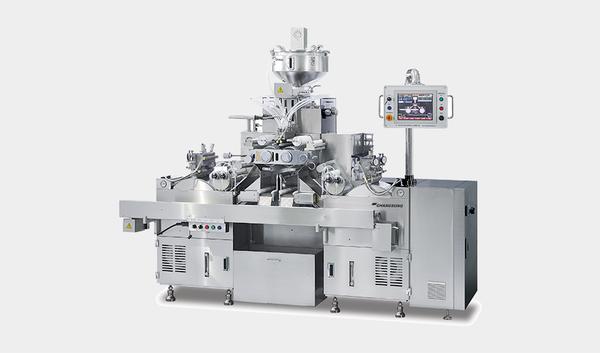

500R Softgel Encapsulation Machine
Standard Softgel Machine
We offer our best selling softgel encapsulation machine built on high craftsmanship and high quality components. This machine is capable of running at maximum speed 5 rpm.
Production Capacity (5RPM)
|
Shapes & Sizes |
No. of Cavities |
Capsules/Hour |
|
Oval #7.5 |
420 |
126.000 |
|
Oval #10 |
396 |
118.800 |
|
Ob #20 |
231 |
69.300 |
400R Softgel Encapsulation Machine
Compact Softgel Machine
CS-M3-400R, the compact machine is proper in small production wile, CS-J1-500R is widely used in mass production. This machine is capable of running at maximum speed of 3.5 rpm. CS-M3-400R is able to be switched as R&D machine if changed die roll and spread box. As the machine won’t take up much space, it requires the minimum work place.
Production Capacity (4RPM)
|
Shapes & Sizes |
No. of Cavities |
Capsules/Hour |
|
Oval #7.5 |
216 |
51.840 |
|
Oval #10 |
176 |
42.240 |
|
Ob #20 |
110 |
26.400 |
RND Softgel Encapsulation Machine
R&D Softgel Machine
ChangSung introduces new RND machine that is suited for development of capsules. The performace is stronger than its appearace, easy and variable speed control up to 3 rpm maximum with touch screen. It won’t much space, just required the small footprint for installation as the compact machine.
Production Capacity (3RPM)
|
Shapes & Sizes |
No. of Cavities |
Capsules/Hour |
|
Oval #7.5 |
35 |
16.560 |
|
Oval #10 |
33 |
15.840 |
|
Ob #20 |
33 |
7.920 |
SRD Softgel Encapsulation Machine
Servo R&D Softgel Machine
ChangSung is introducing a brand new machine which is SERVO RND. It is driven by servo motor. This machine use tsame as existing our RND machine. This machine is running speed of 3 rpm. All device can control by touch screen.
Production Capacity (3RPM)
|
Shapes & Sizes |
No. of Cavities |
Capsules/Hour |
|
Oval #7.5 |
92 |
16.560 |
|
Oval #10 |
88 |
15.840 |
|
Ob #10 |
44 |
7.920 |
Tumble Dryer - Gelatine Melting System - Ultra Fill System
TM | Tunble Dryer
Capsule drying device. Each basket can be individually controlled (drying time and speed)
6 tumblers independently operable
Chainless basket
Equipped with guides preventing capsules from falling to the floor
Baskets removable for cleaning
High drying efficiency with powerful air blow
Equipped with Capsule Shut function for easy basket removal
ONE POT | Gelatin Melting System
300L/500L/600L tanks available
Auto-transfer of raw materials, no need to discharge gelatin solution
Reduced production time due to two powerful driving axles
Fully automatic, easy to operate
Equipped with CIP balls
UFM | Ultra Fill Mixer
100L / 300L / 500L tanks available
Mixing/Homogenizing/Dispensing functions
Operated with touch screen
Auto-positioning tank
Equipped with CIP balls
Tanks with cooling system (optional) available
