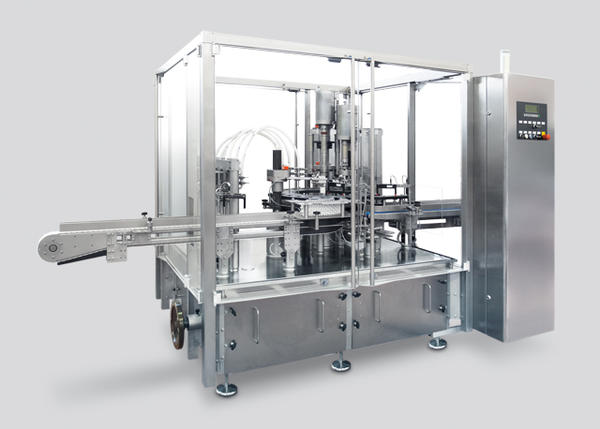

LA - Intermittent Motion Filling and Capping Monoblock

The LA monobloc is the result of a modern design statement to satisfy the needs of a market requiring high performance, ease of format change-over and conformity with GMP norms.

The guarantee of easy cleaning and inspection is made possible by the excellent accessibility between the transfer area of the bottles and the machine bedplate. The conveyor frame has been designed in conformity with the sterile environment regulation.

The innovative design of the transfer starwheel allows for a correct application of laminar flow into the work area and rapid format change-over which can be easily repeated. The volumetric filling system (using a maximum of 8 dosing pump) is kept extremely accurate by the action of three micrometric adjustment eccentrics. The mechanical motion, enabled by close-profile cams, makes the machine robust, extremely reliable and easy to maintain.

The LA is designed to satisfy the different types of filling and capping criteria requested by the pharmaceutical and cosmetic sector. The placement of the cap can by carried out by means of positive movement or pick-off positioning.

For screw-on caps, pre-screwing and successive final closure is done using a separate closing head.

The optional items include electronic control of the screwing torque.

The monobloc can be installed with up to three different capping units, suitable to guarantee the application of all the different types of caps used within the industry.

The reduced dimension of this machine, its versatily and innovative design make it easily integrated in complete packaging lines.

L60-112/212 - Continuous Motion Liquid Filling and Capping Monoblock

CAM, constantly in search of new solutions to meet the demands of customers, has designed the L60 machine, bottle filling and capping monobloc for speeds up to 200 per minute.

This machine combines the simplicity of the volumetric filling with follow-on movement with the reliability of the rotative continuous movement in closing area. Its two construction versions, with eight dosing units, complete the extreme versatility of this machine, covering very high speed ranges, unreliable for intermittent motion machines, or too low speed ranges for continuous motion machines (which finally result too expensive for the required production needs).

The filling starwheel, made free from dosing units, makes this machine particularly suitable for sterilised environments.

DA - Intermittent or continuous Motion Powder Dosing and Capping Monoblock

The alternate motion powder dosing machine, DA model, has been designed and manufactured to meet the high quality standards required by the pharmaceutical industry and the relevant regulations. All parts in contact with the product are manufactured in FDA-approved material and are supplied together with the relevant certificates. They have been designed in such a way to make them easy to remove, easy to inspect and quickly cleanable.

The DA model features a flexible configuration; it can be equipped with a single or double dosing head and with closing heads able to handle every type of caps used in the pharmaceutical packages (child-proof, pilfer proof, dosing cup...).

The machine has been designed in compliance with GMP standards and particular attention has been paid to ergonomics in order to maintain visual control of all stages of the process and to ensure easy access to all parts of the unit.

The dosage is performed by means of a volumetric screw feeder made of AISI 316L, with a servomotor ensuring perfect control and possibility to set speed and time, via operator panel, according to the product type and the requested speed, thus ensuring high accuracy of dosage.

The dosage parameters can be set, saved and stored via the operator panel to be made immediately available in the event of a production change; this ensures the standardization of the process resulting in the achievement of high levels of efficiency and quality.

In addition the machine can be equipped with a net weight control system which measures the weight of the empty bottle on infeed and the weight of the filled bottle on outfeed.
